Surface Temperature Control 1℃ Chill Roller Double Shell Construction BOPP BOPET
Chill Roller Basis Information :
Chill rollers are widely implemented in the primary casting processes of biaxial oriented stretching lines for BOPP, BOPET, BOPA, BOPS, and BOPI, along with longitudinal stretching systems. Their core role lies in the cooling and solidification of molten polymers during the film-forming process, ensuring uniform thickness, planar flatness, and premium film quality.
Chill rollers integrated with specialized internal circulation channel designs are purpose-built to enhance thermal conductivity efficiency and temperature control accuracy. Upon adopting these technologically advanced chill rollers, casting productivity can surge by 20%-30%. This design innovation enables more consistent thermal regulation, making it indispensable for high-speed film production lines that require precise material solidification kinetics.
Chill Roller Characteristics:
Variable diameter alternating spiral flow channel
Surface temperature precision±0.1ºC
High efficiency heat exchange technology performance
High precision dynamic balancing correction
High quality mirror face processing
Anti-corrosion treatment of spiral flow channel
Roller cylindricity, concentricity both ≤0.005mm;
Roller surface hard chromium plated
Roller surface treatment: mirror polished, super finishing mirror, matt, mist and anti adhesive surface;
Overall deformation: < 0.05 mm at full load
| Shell | Double-Shell Construction |
| Flow-System | Channel between inner and outer tube separated with welded leading spirals |
| Roller inside treatment | Anti rust painting |

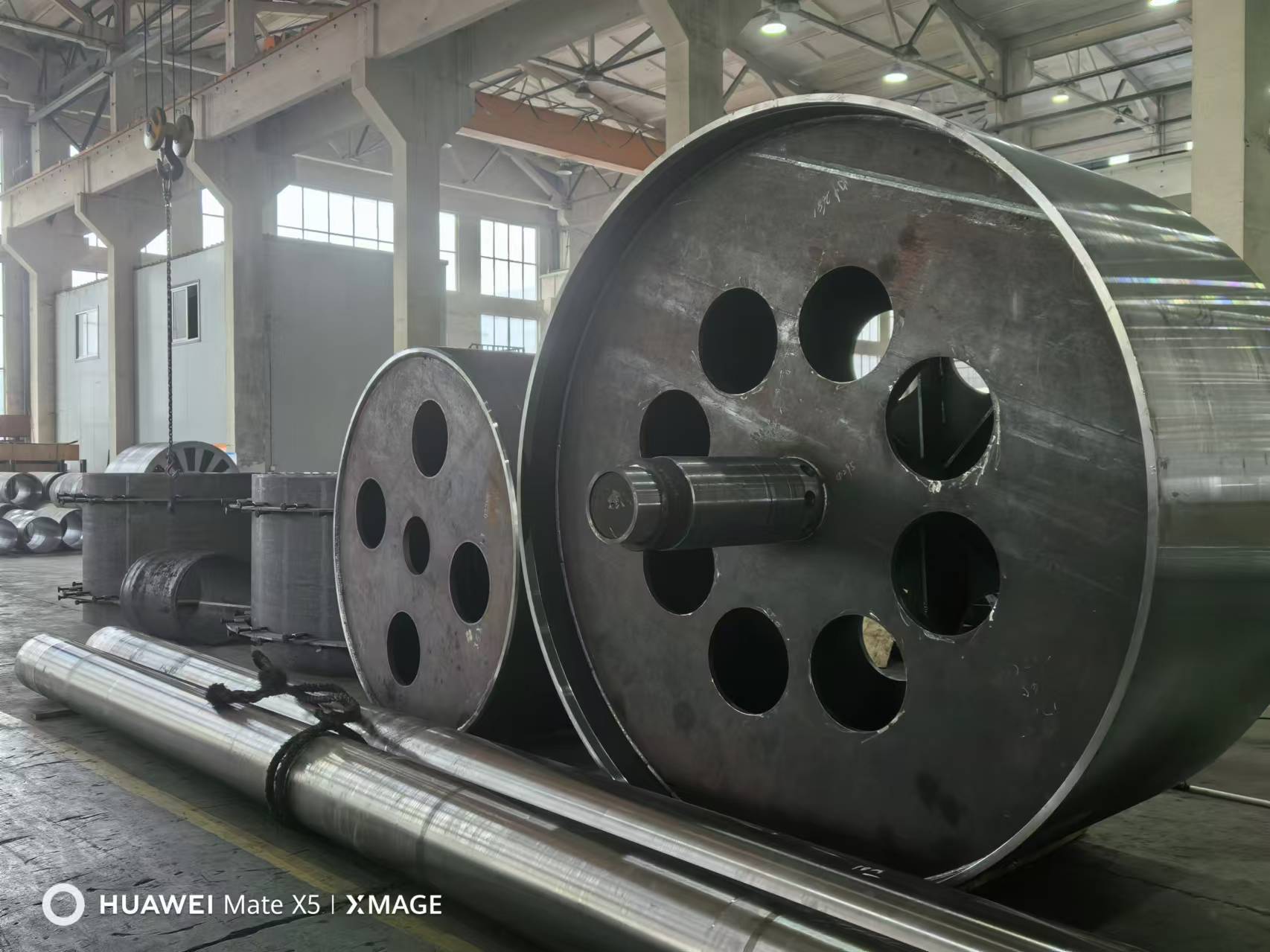

| Journal-construction | Shrinked and welded side disk and shaft made of S355 |
| Chrome coating | 120um finished thickness |
| Surface roughness | 0.3 um |
| TIR | 0.03 mm |
| Cylinder form | 0.03 mm |
Chill Roller Advantage
Casting system is a step of of vital importance in film stretching line. The finish film quality after stretching will be finally based on master precsion of casting system. This chill roller has already been used a lot in high level stretching line imported from Europe and its performance in practical application obtains unanimous approval and favorable comment from customers.
